TAKAHASHI TOA-150B REFRACTOR

TAKAHASHI SKU: TOK15110

$15,070.00

Shipping calculated at checkout

In Stock: ships now

The TOA series is a member of Takahashi’s line of triplet refractors.  In the TOA design, three lens elements are used, with the front and rear constructed from ED glass.  The resulting system achieves a high level of apochromatic performance for both visual observation and imaging.  Takahashi engineers have a undertaken a complete redesign of the triplet system, completely eliminating spherical aberration while minimizing axial chromatic aberration in the visible light spectrum.



In typical apochromatic designs, the elimination of chromatic aberration is usually at the expense of increasing spherical aberration at various wavelengths.  However, with the TOA series, the focal shift across the entire visible spectrum from 436 nm up to 656 nm is less than +/- 0.01 mm.  This is less than 1/100 the aberration of a typical apochromatic design.



TOA-150B

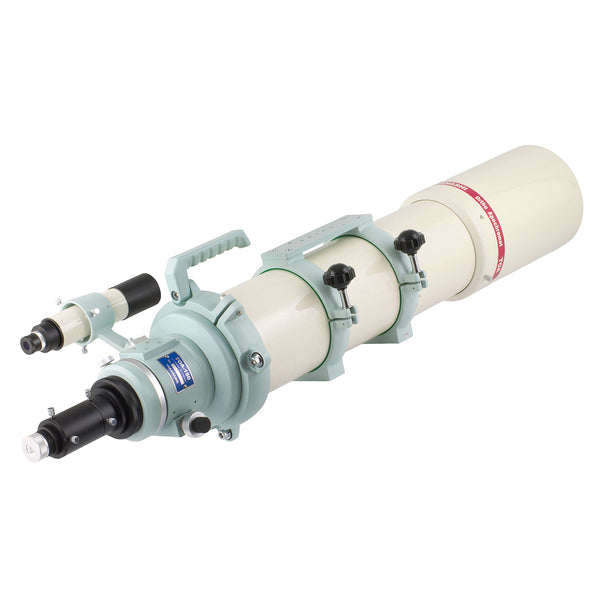

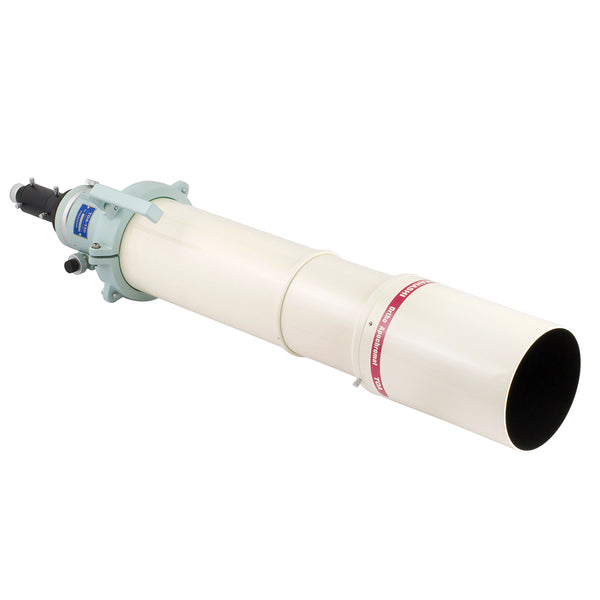

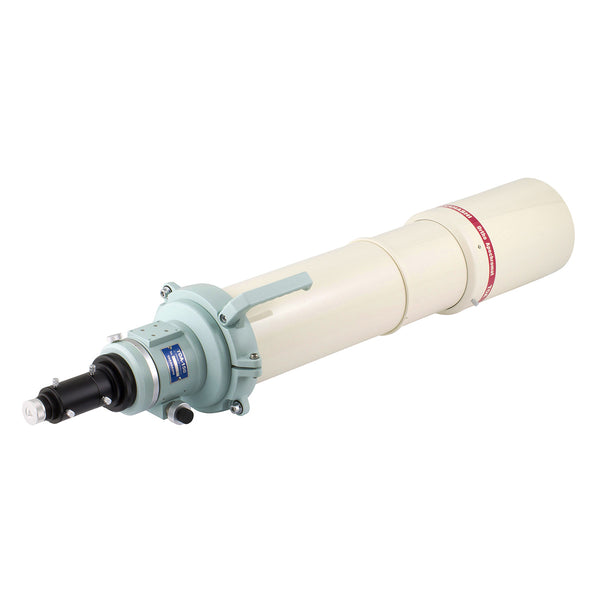

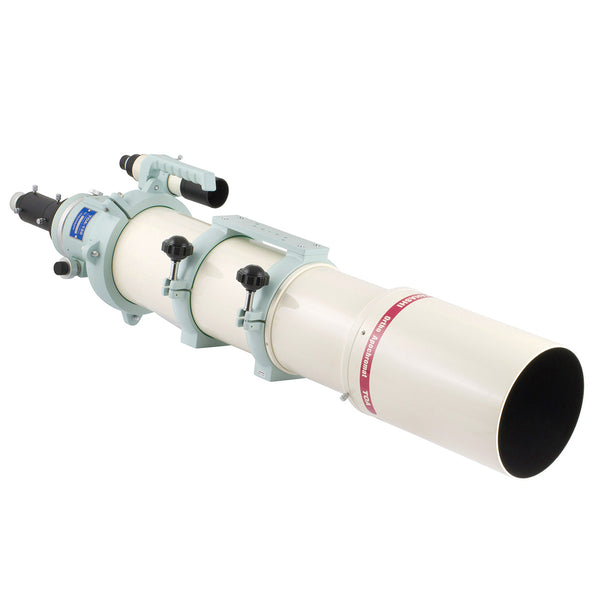

The TOA-150B is a 150 mm apochromatic f/7.3 refractor with a focal length of 1100 mm.  It features a retractable lens hood, a 4 inch rack and pinion focuser with a 7:1 fine focuser, and a 360 degree camera angle adjuster.  A complete line of flatteners, reducers and extenders are available, including the 67-series flattener, which provides a 90 mm imaging circle.



A tube weight is standard to assist in balancing instrumentation or visual accessories.

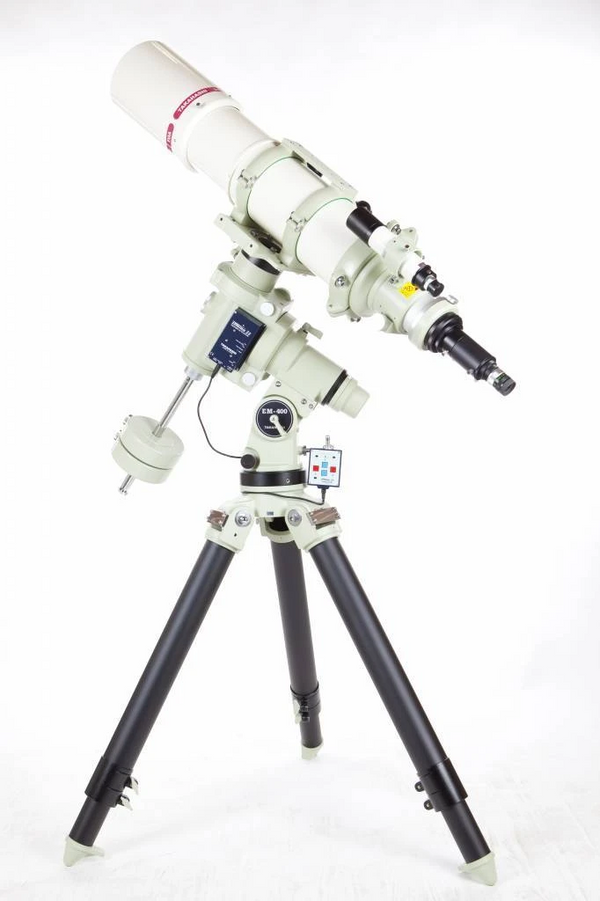

Please note: mount, tripod, tube holder and finder sold separately.



Included in the box:

Optical Tube Assembly

CAA TKP30200

Coupling (TW) TKP31003

50.8 Sleeve TKP00113

Coupling (S) TKP00103

Ocular adapter 31.7 TKP00101

Ocular adapter 50.8 TKP27110

Extension tube TKP31112



TOA150B Visual System Chart

TOA150B Reducer System Chart

TOA150B Extender System Chart

TOA150B TOA 35 Flattener System Chart

TOA150B 67 Flattener System Chart
